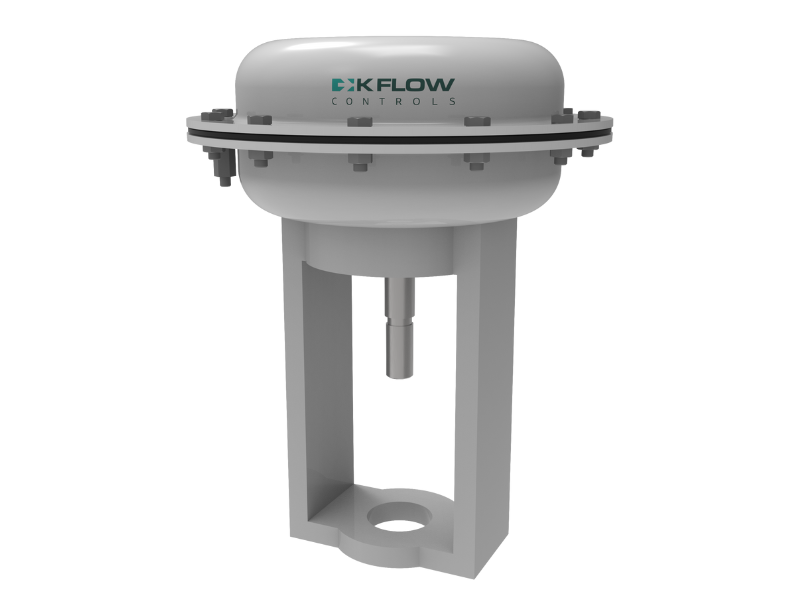

Diaphragm Series Pneumatic Actuators
- Excellent Repeatability
- 100K + cycles without loss of precision
- Compact in Size
- High Thrust Capability & Stiffness
- Application Versatality
Specifications:
- Effective Diaphragm area upto 150 Sq in
- Thrust range upto - 9000lbs
- Stroke upto 4 inches
- Pressure rating upto 60 PSI
- Direct or reverse acting styles

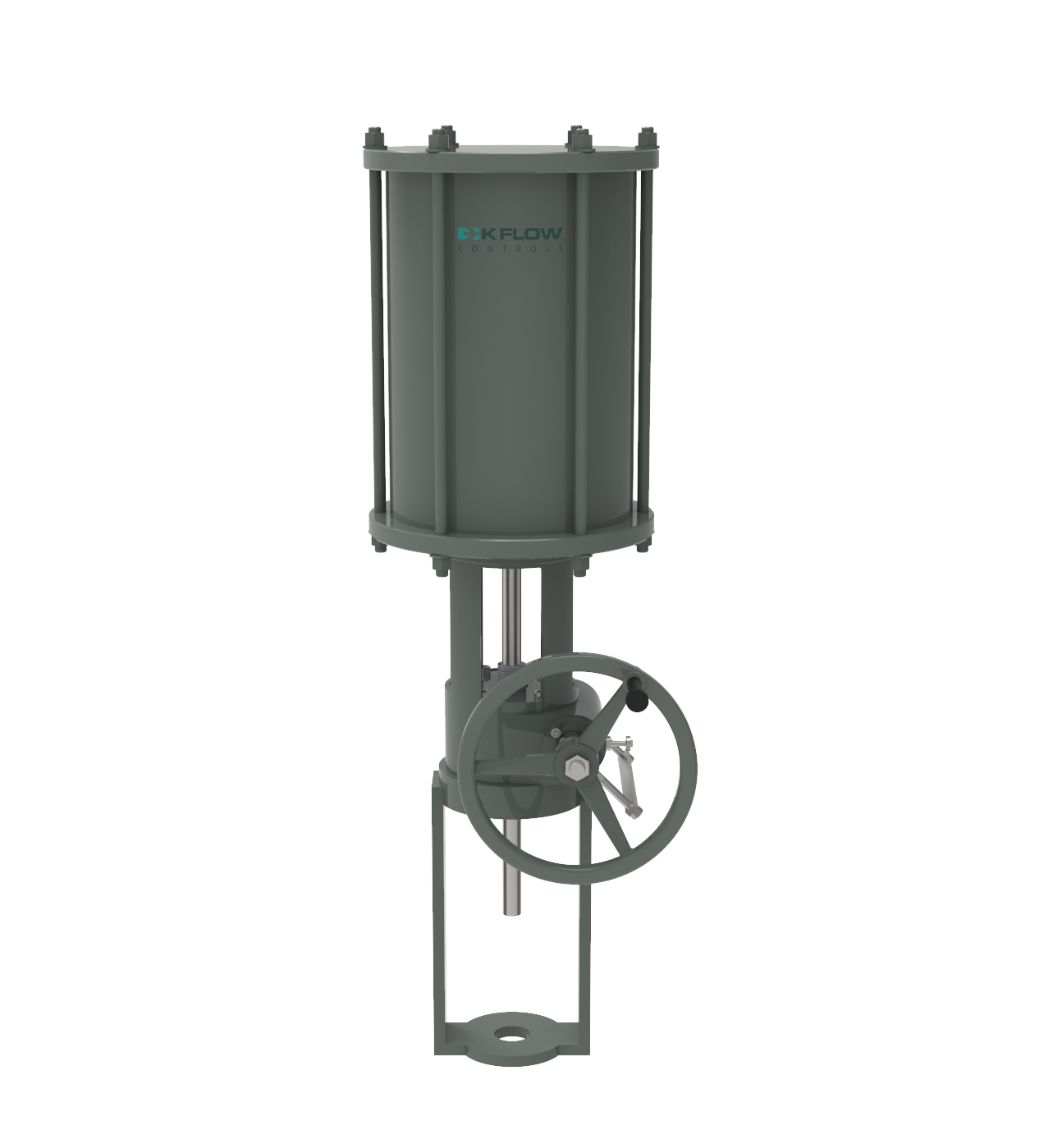

Piston Series Pneumatic Actuators
- Spring return and Double acting actuators
- Designed and engineered for Severe service applications
- High Thrust Capability
- Application Versatality
Specifications:
- Bore Size: Starts from 6″ to custom requriements
- Stroke Range upto 12"
- Pressure rating upto 150 PSI
- Side Mounted & Top mounted hand wheel options
